Netbox 란 ? NetBox는 네트워크 인프라를 관리하기 위한 오픈 소스 툴입니다. 이는 데이터 센터와 기업 네트워크 환경에서 장비들의 인벤토리, IP 주소 관리, 랙 배치, 케이블 관리 등을 효과적으로 관리할 수 있도록 도와줍니다. NetBox는 Django 웹 애플리케이션으로 구현되어 있으며, RESTful API를 통해 외부 시스템과의 통합이 가능합니다. 이는 유연하고 확장 가능한 네트워크 인프라 관리 솔루션으로 널리 사용되고 있습니다. https://netboxlabs.com/ https://netboxlabs.com/docs/netbox/en/stable/installation/ https://github.com/netbox-community/netbox
GitHub - netbox-community/netbox: The premier source of truth powering network automation. Open source under Apache 2. Public de
The premier source of truth powering network automation. Open source under Apache 2. Public demo: https://demo.netbox.dev - netbox-community/netbox
github.com
Enterprise-Grade, SaaS Network Source of Truth | NetBox Labs
Build and manage complex networks easier with NetBox Labs, using an enterprise-grade version of the world’s most popular network source of truth.
netboxlabs.com
Installing NetBox - NetBox OSS 4.0.3
Installation NetBox Cloud The instructions below are for installing NetBox as a standalone, self-hosted application. For a Cloud-delivered solution, check out NetBox Cloud by NetBox Labs. The installation instructions provided here have been tested to work
netboxlabs.com
설치환경
# 서버 ip : 192.168.56.236
# cat os-release
NAME="Rocky Linux"
VERSION="8.10 (Green Obsidian)"
ID="rocky"
ID_LIKE="rhel centos fedora"
VERSION_ID="8.10"
PLATFORM_ID="platform:el8"
PRETTY_NAME="Rocky Linux 8.10 (Green Obsidian)"
ANSI_COLOR="0;32"
LOGO="fedora-logo-icon"
CPE_NAME="cpe:/o:rocky:rocky:8:GA"
HOME_URL="https://rockylinux.org/"
BUG_REPORT_URL="https://bugs.rockylinux.org/"
SUPPORT_END="2029-05-31"
ROCKY_SUPPORT_PRODUCT="Rocky-Linux-8"
ROCKY_SUPPORT_PRODUCT_VERSION="8.10"
REDHAT_SUPPORT_PRODUCT="Rocky Linux"
REDHAT_SUPPORT_PRODUCT_VERSION="8.10"
# docker -v
Docker version 26.1.3, build b72abbb
# docker-compose -v
Docker Compose version v2.27.1
설치 로그파일
20240602_netbox-docker-compose설치로그.txt
0.10MB
Docker 및 Docker-compose 설치 (설치가 안되어 있으면 설치)
# docker 설치
# sudo dnf update
# sudo dnf install -y dnf-plugins-core
# sudo dnf config-manager --add-repo=https://download.docker.com/linux/centos/docker-ce.repo
# sudo dnf install docker-ce docker-ce-cli containerd.io
# sudo systemctl start docker
# sudo systemctl enable docker
# docker-compose 설치
# sudo curl -L https://github.com/docker/compose/releases/latest/download/docker-compose-$(uname -s)-$(uname -m) -o /usr/local/bin/docker-compose
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
100 60.1M 100 60.1M 0 0 8858k 0 0:00:06 0:00:06 --:--:-- 11.2M
# sudo chmod +x /usr/local/bin/docker-compose
Docker로 Netbox 설치하기
# cd $HOME
# dnf install git
Last metadata expiration check: 0:03:01 ago on Sun 02 Jun 2024 08:48:00 AM KST.
Dependencies resolved.
===================================================================================================================================
Package Architecture Version Repository Size
===================================================================================================================================
Installing:
git x86_64 2.43.0-1.el8 appstream 91 k
Installing dependencies:
git-core x86_64 2.43.0-1.el8 appstream 11 M
git-core-doc noarch 2.43.0-1.el8 appstream 3.1 M
perl-Error noarch 1:0.17025-2.el8 appstream 45 k
perl-Git noarch 2.43.0-1.el8 appstream 78 k
perl-TermReadKey x86_64 2.37-7.el8 appstream 39 k
Transaction Summary
===================================================================================================================================
Install 6 Packages
Total download size: 14 M
Installed size: 46 M
Is this ok [y/N]: y
Downloading Packages:
(1/6): git-2.43.0-1.el8.x86_64.rpm 1.2 MB/s | 91 kB 00:00
(2/6): perl-Error-0.17025-2.el8.noarch.rpm 66 kB/s | 45 kB 00:00
(3/6): perl-Git-2.43.0-1.el8.noarch.rpm 35 kB/s | 78 kB 00:02
(4/6): git-core-doc-2.43.0-1.el8.noarch.rpm 564 kB/s | 3.1 MB 00:05
(5/6): perl-TermReadKey-2.37-7.el8.x86_64.rpm 15 kB/s | 39 kB 00:02
(6/6): git-core-2.43.0-1.el8.x86_64.rpm 1.7 MB/s | 11 MB 00:06
-----------------------------------------------------------------------------------------------------------------------------------
Total 2.1 MB/s | 14 MB 00:06
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : git-core-2.43.0-1.el8.x86_64 1/6
Installing : git-core-doc-2.43.0-1.el8.noarch 2/6
Installing : perl-TermReadKey-2.37-7.el8.x86_64 3/6
Installing : perl-Error-1:0.17025-2.el8.noarch 4/6
Installing : perl-Git-2.43.0-1.el8.noarch 5/6
Installing : git-2.43.0-1.el8.x86_64 6/6
Running scriptlet: git-2.43.0-1.el8.x86_64 6/6
Verifying : git-2.43.0-1.el8.x86_64 1/6
Verifying : git-core-2.43.0-1.el8.x86_64 2/6
Verifying : git-core-doc-2.43.0-1.el8.noarch 3/6
Verifying : perl-Error-1:0.17025-2.el8.noarch 4/6
Verifying : perl-Git-2.43.0-1.el8.noarch 5/6
Verifying : perl-TermReadKey-2.37-7.el8.x86_64 6/6
Installed:
git-2.43.0-1.el8.x86_64 git-core-2.43.0-1.el8.x86_64 git-core-doc-2.43.0-1.el8.noarch
perl-Error-1:0.17025-2.el8.noarch perl-Git-2.43.0-1.el8.noarch perl-TermReadKey-2.37-7.el8.x86_64
Complete!
- Quickstart (1) ~ (5) 방식으로 진행함
#(1) git clone -b release https://github.com/netbox-community/netbox-docker.git
#(2) cd netbox-docker

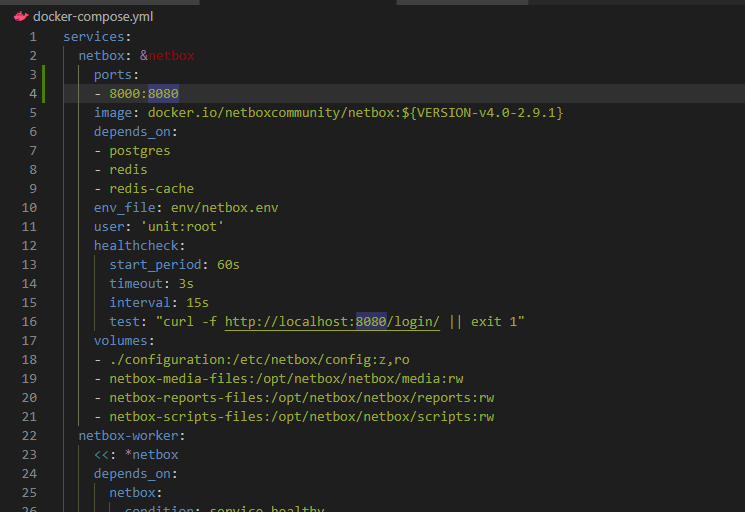

#(3) tee docker-compose.override.yml <<EOF
services:
netbox:
ports:
- 8000:8080
EOF
#(4) docker compose pull
#(5) docker compose up# git clone -b release https://github.com/netbox-community/netbox-docker.git
Cloning into 'netbox-docker'...
remote: Enumerating objects: 4633, done.
remote: Counting objects: 100% (100/100), done.
remote: Compressing objects: 100% (55/55), done.
remote: Total 4633 (delta 51), reused 80 (delta 42), pack-reused 4533
Receiving objects: 100% (4633/4633), 1.14 MiB | 11.79 MiB/s, done.
Resolving deltas: 100% (2670/2670), done.
docker-compose를 이용하여 netbox를 설치한다
아래 로그중에 tee 부분은 box내용을 복사해서 붙혀넣기 하면 됨
tee docker-compose.override.yml <<EOF
services:
netbox:
ports:
- 8000:8080
EOF# cd netbox-docker/
# ls
build-functions docker docker-compose.yml pyproject.toml requirements-container.txt
build-latest.sh docker-compose.override.yml.example Dockerfile README.md test-configuration
build.sh docker-compose.test.override.yml env release.sh test.sh
configuration docker-compose.test.yml LICENSE renovate.json VERSION
# tee docker-compose.override.yml <<EOF
> services:
> netbox:
> ports:
> - 8000:8080
> EOF
services:
netbox:
ports:
- 8000:8080
# docker compose pull
[+] Pulling 22/22
? netbox-housekeeping Skipped - Image is already being pulled by netbox-worker 0.0s
? redis-cache Skipped - Image is already being pulled by redis 0.0s
? netbox Skipped - Image is already being pulled by netbox-worker 0.0s
? redis Pulled 6.2s
? d25f557d7f31 Pull complete 1.3s
? b03b02e01fda Pull complete 1.3s
? 7b8eb84c4535 Pull complete 1.5s
? ad34468061c3 Pull complete 1.6s
? d3f4ad8ba58b Pull complete 2.9s
? 6f3e0605beb6 Pull complete 2.9s
? 4f4fb700ef54 Pull complete 3.0s
? b44457c91edf Pull complete 3.0s
? netbox-worker Pulled 1.9s
? postgres Pulled 17.9s
? 57103dbfb65d Pull complete 2.7s
? c0ee2744e27d Pull complete 3.0s
? d29578debbf7 Pull complete 14.5s
? bb83e095c2c5 Pull complete 14.5s
? 2ce15d92d22a Pull complete 14.5s
? 18a493f79a7a Pull complete 14.5s
? 4a11e3af9edf Pull complete 14.6s
? f74f8aaae0d0 Pull complete 14.6s
# docker compose up
[+] Running 13/11
? Network netbox-docker_default Created 0.2s
? Volume "netbox-docker_netbox-redis-data" Created 0.0s
? Volume "netbox-docker_netbox-redis-cache-data" Created 0.0s
? Volume "netbox-docker_netbox-media-files" Created 0.0s
? Volume "netbox-docker_netbox-reports-files" Created 0.0s
? Volume "netbox-docker_netbox-scripts-files" Created 0.0s
? Volume "netbox-docker_netbox-postgres-data" Created 0.0s
? Container netbox-docker-redis-cache-1 Created 0.1s
? Container netbox-docker-postgres-1 Created 0.1s
? Container netbox-docker-redis-1 Created 0.1s
? Container netbox-docker-netbox-1 Created 0.1s
? Container netbox-docker-netbox-housekeeping-1 Created 0.0s
? Container netbox-docker-netbox-worker-1 Created 0.1s
Attaching to netbox-1, netbox-housekeeping-1, netbox-worker-1, postgres-1, redis-1, redis-cache-1
redis-cache-1 | 1:C 01 Jun 2024 23:52:50.305 # WARNING Memory overcommit must be enabled! Without it, a background save or replication may fail under low memory condition. Being disabled, it can also cause failures without low memory condition, see http s://github.com/jemalloc/jemalloc/issues/1328. To fix this issue add 'vm.overcommit_memory = 1' to /etc/sysctl.conf and then reboot or run the command 'sysctl vm.overcommit_memory=1' for this to take effect.
redis-cache-1 | 1:C 01 Jun 2024 23:52:50.305 * oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
redis-cache-1 | 1:C 01 Jun 2024 23:52:50.305 * Redis version=7.2.5, bits=64, commit=00000000, modified=0, pid=1, just star ted
redis-cache-1 | 1:C 01 Jun 2024 23:52:50.305 * Configuration loaded
redis-cache-1 | 1:M 01 Jun 2024 23:52:50.306 * monotonic clock: POSIX clock_gettime
redis-cache-1 | 1:M 01 Jun 2024 23:52:50.306 * Running mode=standalone, port=6379.
redis-cache-1 | 1:M 01 Jun 2024 23:52:50.306 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sy s/net/core/somaxconn is set to the lower value of 128.
redis-cache-1 | 1:M 01 Jun 2024 23:52:50.306 * Server initialized
redis-cache-1 | 1:M 01 Jun 2024 23:52:50.306 * Ready to accept connections tcp
redis-1 | 1:C 01 Jun 2024 23:52:50.334 # WARNING Memory overcommit must be enabled! Without it, a background save or replication may fail under low memory condition. Being disabled, it can also cause failures without low memory condition, see http s://github.com/jemalloc/jemalloc/issues/1328. To fix this issue add 'vm.overcommit_memory = 1' to /etc/sysctl.conf and then reboot or run the command 'sysctl vm.overcommit_memory=1' for this to take effect.
redis-1 | 1:C 01 Jun 2024 23:52:50.334 * oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
redis-1 | 1:C 01 Jun 2024 23:52:50.334 * Redis version=7.2.5, bits=64, commit=00000000, modified=0, pid=1, just star ted
redis-1 | 1:C 01 Jun 2024 23:52:50.334 * Configuration loaded
redis-1 | 1:M 01 Jun 2024 23:52:50.335 * monotonic clock: POSIX clock_gettime
redis-1 | 1:M 01 Jun 2024 23:52:50.335 * Running mode=standalone, port=6379.
redis-1 | 1:M 01 Jun 2024 23:52:50.335 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sy s/net/core/somaxconn is set to the lower value of 128.
redis-1 | 1:M 01 Jun 2024 23:52:50.335 * Server initialized
redis-1 | 1:M 01 Jun 2024 23:52:50.339 * Creating AOF base file appendonly.aof.1.base.rdb on server start
redis-1 | 1:M 01 Jun 2024 23:52:50.349 * Creating AOF incr file appendonly.aof.1.incr.aof on server start
redis-1 | 1:M 01 Jun 2024 23:52:50.349 * Ready to accept connections tcp
postgres-1 | The files belonging to this database system will be owned by user "postgres".
postgres-1 | This user must also own the server process.
postgres-1 |
postgres-1 | The database cluster will be initialized with locale "en_US.utf8".
postgres-1 | The default database encoding has accordingly been set to "UTF8".
postgres-1 | The default text search configuration will be set to "english".
postgres-1 |
postgres-1 | Data page checksums are disabled.
postgres-1 |
postgres-1 | fixing permissions on existing directory /var/lib/postgresql/data ... ok
postgres-1 | creating subdirectories ... ok
postgres-1 | selecting dynamic shared memory implementation ... posix
postgres-1 | selecting default max_connections ... 100
postgres-1 | selecting default shared_buffers ... 128MB
postgres-1 | selecting default time zone ... UTC
postgres-1 | creating configuration files ... ok
postgres-1 | running bootstrap script ... ok
postgres-1 | sh: locale: not found
postgres-1 | 2024-06-01 23:52:50.631 UTC [30] WARNING: no usable system locales were found
postgres-1 | performing post-bootstrap initialization ... ok
postgres-1 | syncing data to disk ... ok
postgres-1 |
postgres-1 |
postgres-1 | Success. You can now start the database server using:
postgres-1 |
postgres-1 | pg_ctl -D /var/lib/postgresql/data -l logfile start
postgres-1 |
postgres-1 | initdb: warning: enabling "trust" authentication for local connections
postgres-1 | initdb: hint: You can change this by editing pg_hba.conf or using the option -A, or --auth-local and --aut h-host, the next time you run initdb.
postgres-1 | waiting for server to start....2024-06-01 23:52:51.402 UTC [36] LOG: starting PostgreSQL 16.3 on x86_64-p c-linux-musl, compiled by gcc (Alpine 13.2.1_git20240309) 13.2.1 20240309, 64-bit
postgres-1 | 2024-06-01 23:52:51.404 UTC [36] LOG: listening on Unix socket "/var/run/postgresql/.s.PGSQL.5432"
postgres-1 | 2024-06-01 23:52:51.412 UTC [39] LOG: database system was shut down at 2024-06-01 23:52:50 UTC
postgres-1 | 2024-06-01 23:52:51.420 UTC [36] LOG: database system is ready to accept connections
postgres-1 | done
postgres-1 | server started
postgres-1 | CREATE DATABASE
postgres-1 |
postgres-1 |
postgres-1 | /usr/local/bin/docker-entrypoint.sh: ignoring /docker-entrypoint-initdb.d/*
postgres-1 |
postgres-1 | waiting for server to shut down....2024-06-01 23:52:51.566 UTC [36] LOG: received fast shutdown request
postgres-1 | 2024-06-01 23:52:51.571 UTC [36] LOG: aborting any active transactions
postgres-1 | 2024-06-01 23:52:51.573 UTC [36] LOG: background worker "logical replication launcher" (PID 42) exited wi th exit code 1
postgres-1 | 2024-06-01 23:52:51.575 UTC [37] LOG: shutting down
postgres-1 | 2024-06-01 23:52:51.577 UTC [37] LOG: checkpoint starting: shutdown immediate
postgres-1 | 2024-06-01 23:52:51.722 UTC [37] LOG: checkpoint complete: wrote 924 buffers (5.6%); 0 WAL file(s) added, 0 removed, 0 recycled; write=0.051 s, sync=0.087 s, total=0.148 s; sync files=301, longest=0.013 s, average=0.001 s; distance=4267 kB, estimate=4267 kB; lsn=0/191AA98, redo lsn=0/191AA98
postgres-1 | 2024-06-01 23:52:51.727 UTC [36] LOG: database system is shut down
postgres-1 | done
postgres-1 | server stopped
postgres-1 |
postgres-1 | PostgreSQL init process complete; ready for start up.
postgres-1 |
postgres-1 | 2024-06-01 23:52:51.786 UTC [1] LOG: starting PostgreSQL 16.3 on x86_64-pc-linux-musl, compiled by gcc (A lpine 13.2.1_git20240309) 13.2.1 20240309, 64-bit
postgres-1 | 2024-06-01 23:52:51.787 UTC [1] LOG: listening on IPv4 address "0.0.0.0", port 5432
postgres-1 | 2024-06-01 23:52:51.787 UTC [1] LOG: listening on IPv6 address "::", port 5432
postgres-1 | 2024-06-01 23:52:51.792 UTC [1] LOG: listening on Unix socket "/var/run/postgresql/.s.PGSQL.5432"
postgres-1 | 2024-06-01 23:52:51.799 UTC [52] LOG: database system was shut down at 2024-06-01 23:52:51 UTC
postgres-1 | 2024-06-01 23:52:51.803 UTC [1] LOG: database system is ready to accept connections
postgres-1 | 2024-06-01 23:52:57.534 UTC [56] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:52:57.534 UTC [56] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('group', 'permission')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('partial', 'code', 'nonce', 'usersocialau th', 'association')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('autosyncrecord', 'job', 'datasource', 'managed file', 'configrevision', 'datafile')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('object permission', 'user', 'token', 'userconfig', 'group')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('circuittermination', 'provideraccount', 'providernetwork', 'circuit', 'circuittype', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('interface', 'powerfeed', 'site', 'consoleserverporttemplate', 'mo dule', 'rackrole', 'moduletype', 'region', 'cablepath', 'sitegroup', 'powerport', 'inventoryitemrole', 'rearporttemplate', 'moduleb aytemplate', 'consoleserverport', 'poweroutlettemplate', 'inventoryitemtemplate', 'location', 'rackreservation', 'device', 'console port', 'frontport', 'frontporttemplate', 'powerporttemplate', 'consoleporttemplate', 'rearport', 'virtualchassis', 'powerpanel', 'd evicetype', 'cable', 'manufacturer', 'devicebay', 'interfacetemplate', 'modulebay', 'rack', 'cabletermination', 'devicerole', 'devi cebaytemplate', 'poweroutlet', 'platform', 'virtualdevicecontext', 'inventoryitem')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('asn', 'routetarget', 'vrf', 'aggregate', 'iprange', 'servicetemplate', 'asnrange', 'fhrpgro upassignment', 'fhrpgroup', 'ipaddress', 'prefix', 'rir', 'service', 'vlangroup', 'role', 'vlan')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('webhook', 'imageattachment', 'objectchange', 'cachedvalue', 'branch', 'tagg editem', 'exporttemplate', 'customfieldchoiceset', 'configcontext', 'script', 'bookmark', 'customlink', 'savedfilter', 'tag', 'conf igtemplate', 'customfield', 'journalentry', 'dashboard', 'stagedchange', 'eventrule')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contact', 'tenantgroup', 'contactrole', 'contactgroup', 'tenant', 'contactassignment') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('clustergroup', 'virtualmachine', 'cluster', 'clustertype', 'virtualdisk', 'vminterface')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('l2vpn', 'ikeproposal', 'tunnel', 'ipsecprofile', 'ikepolicy', 'tunneltermination', 'l2vpntermination', 'ipsecproposal', 'tunnelgroup', 'ipsecpolicy')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessli nk', 'wirelesslangroup', 'wirelesslan')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:52:57.537 UTC [56] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:52:57.537 UTC [56] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('group', 'permission')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('partial', 'code', 'nonce', 'usersocialau th', 'association')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('autosyncrecord', 'job', 'datasource', 'managed file', 'configrevision', 'datafile')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('object permission', 'user', 'token', 'userconfig', 'group')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('circuittermination', 'provideraccount', 'providernetwork', 'circuit', 'circuittype', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('interface', 'powerfeed', 'site', 'consoleserverporttemplate', 'mo dule', 'rackrole', 'moduletype', 'region', 'cablepath', 'sitegroup', 'powerport', 'inventoryitemrole', 'rearporttemplate', 'moduleb aytemplate', 'consoleserverport', 'poweroutlettemplate', 'inventoryitemtemplate', 'location', 'rackreservation', 'device', 'console port', 'frontport', 'frontporttemplate', 'powerporttemplate', 'consoleporttemplate', 'rearport', 'virtualchassis', 'powerpanel', 'd evicetype', 'cable', 'manufacturer', 'devicebay', 'interfacetemplate', 'modulebay', 'rack', 'cabletermination', 'devicerole', 'devi cebaytemplate', 'poweroutlet', 'platform', 'virtualdevicecontext', 'inventoryitem')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('asn', 'routetarget', 'vrf', 'aggregate', 'iprange', 'servicetemplate', 'asnrange', 'fhrpgro upassignment', 'fhrpgroup', 'ipaddress', 'prefix', 'rir', 'service', 'vlangroup', 'role', 'vlan')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('webhook', 'imageattachment', 'objectchange', 'cachedvalue', 'branch', 'tagg editem', 'exporttemplate', 'customfieldchoiceset', 'configcontext', 'script', 'bookmark', 'customlink', 'savedfilter', 'tag', 'conf igtemplate', 'customfield', 'journalentry', 'dashboard', 'stagedchange', 'eventrule')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contact', 'tenantgroup', 'contactrole', 'contactgroup', 'tenant', 'contactassignment') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('clustergroup', 'virtualmachine', 'cluster', 'clustertype', 'virtualdisk', 'vminterface')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('l2vpn', 'ikeproposal', 'tunnel', 'ipsecprofile', 'ikepolicy', 'tunneltermination', 'l2vpntermination', 'ipsecproposal', 'tunnelgroup', 'ipsecpolicy')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessli nk', 'wirelesslangroup', 'wirelesslan')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:52:58.098 UTC [56] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:52:58.098 UTC [56] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('group', 'permission')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('partial', 'code', 'nonce', 'usersocialau th', 'association')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('autosyncrecord', 'job', 'datasource', 'managed file', 'configrevision', 'datafile')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('object permission', 'user', 'token', 'userconfig', 'group')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('circuittermination', 'provideraccount', 'providernetwork', 'circuit', 'circuittype', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('interface', 'powerfeed', 'site', 'consoleserverporttemplate', 'mo dule', 'rackrole', 'moduletype', 'region', 'cablepath', 'sitegroup', 'powerport', 'inventoryitemrole', 'rearporttemplate', 'moduleb aytemplate', 'consoleserverport', 'poweroutlettemplate', 'inventoryitemtemplate', 'location', 'rackreservation', 'device', 'console port', 'frontport', 'frontporttemplate', 'powerporttemplate', 'consoleporttemplate', 'rearport', 'virtualchassis', 'powerpanel', 'd evicetype', 'cable', 'manufacturer', 'devicebay', 'interfacetemplate', 'modulebay', 'rack', 'cabletermination', 'devicerole', 'devi cebaytemplate', 'poweroutlet', 'platform', 'virtualdevicecontext', 'inventoryitem')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('asn', 'routetarget', 'vrf', 'aggregate', 'iprange', 'servicetemplate', 'asnrange', 'fhrpgro upassignment', 'fhrpgroup', 'ipaddress', 'prefix', 'rir', 'service', 'vlangroup', 'role', 'vlan')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('webhook', 'imageattachment', 'objectchange', 'cachedvalue', 'branch', 'tagg editem', 'exporttemplate', 'customfieldchoiceset', 'configcontext', 'script', 'bookmark', 'customlink', 'savedfilter', 'tag', 'conf igtemplate', 'customfield', 'journalentry', 'dashboard', 'stagedchange', 'eventrule')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contact', 'tenantgroup', 'contactrole', 'contactgroup', 'tenant', 'contactassignment') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('clustergroup', 'virtualmachine', 'cluster', 'clustertype', 'virtualdisk', 'vminterface')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('l2vpn', 'ikeproposal', 'tunnel', 'ipsecprofile', 'ikepolicy', 'tunneltermination', 'l2vpntermination', 'ipsecproposal', 'tunnelgroup', 'ipsecpolicy')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessli nk', 'wirelesslangroup', 'wirelesslan')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:53:03.425 UTC [57] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:53:03.425 UTC [57] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('group', 'permission')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('association', 'usersocialauth', 'nonce', 'partial', 'code')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('datafile', 'datasource', 'configrevision', 'ma nagedfile', 'autosyncrecord', 'job')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('token' , 'objectpermission', 'user', 'group', 'userconfig')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('provideraccount', 'circuit', 'circuittype', 'circuittermination', 'providernetwork', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('poweroutlettemplate', 'virtualchassis', 'rearport', 'interfacetem plate', 'inventoryitemrole', 'interface', 'devicebay', 'modulebaytemplate', 'region', 'devicetype', 'virtualdevicecontext', 'rearpo rttemplate', 'powerfeed', 'consoleporttemplate', 'consoleport', 'frontporttemplate', 'cable', 'consoleserverporttemplate', 'cablepa th', 'inventoryitemtemplate', 'moduletype', 'devicebaytemplate', 'module', 'rack', 'rackreservation', 'powerpanel', 'rackrole', 'po werport', 'consoleserverport', 'devicerole', 'modulebay', 'sitegroup', 'powerporttemplate', 'inventoryitem', 'device', 'cabletermin ation', 'manufacturer', 'frontport', 'location', 'poweroutlet', 'site', 'platform')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('prefix', 'service', 'servicetemplate', 'vlan', 'vlangroup', 'role', 'ipaddress', 'asnrange' , 'fhrpgroupassignment', 'asn', 'aggregate', 'rir', 'fhrpgroup', 'iprange', 'vrf', 'routetarget')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('savedfilter', 'tag', 'branch', 'configtemplate', 'customlink', 'customfield choiceset', 'exporttemplate', 'imageattachment', 'journalentry', 'configcontext', 'taggeditem', 'dashboard', 'script', 'eventrule', 'stagedchange', 'webhook', 'cachedvalue', 'bookmark', 'customfield', 'objectchange')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contactrole', 'contactassignment', 'contact', 'contactgroup', 'tenantgroup', 'tenant') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('virtualdisk', 'cluster', 'cluster type', 'vminterface', 'clustergroup', 'virtualmachine')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('ipsecpolicy', 'ipsecproposal', 'l2vpn', 'tunnelgroup', 'ikepolicy', 'l2vpntermination', 'tunnel', 'ikeproposal', 'tunnel termination', 'ipsecprofile')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessli nk', 'wirelesslangroup', 'wirelesslan')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:53:03.429 UTC [57] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:53:03.429 UTC [57] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('group', 'permission')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('association', 'usersocialauth', 'nonce', 'partial', 'code')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('datafile', 'datasource', 'configrevision', 'ma nagedfile', 'autosyncrecord', 'job')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('token' , 'objectpermission', 'user', 'group', 'userconfig')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('provideraccount', 'circuit', 'circuittype', 'circuittermination', 'providernetwork', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('poweroutlettemplate', 'virtualchassis', 'rearport', 'interfacetem plate', 'inventoryitemrole', 'interface', 'devicebay', 'modulebaytemplate', 'region', 'devicetype', 'virtualdevicecontext', 'rearpo rttemplate', 'powerfeed', 'consoleporttemplate', 'consoleport', 'frontporttemplate', 'cable', 'consoleserverporttemplate', 'cablepa th', 'inventoryitemtemplate', 'moduletype', 'devicebaytemplate', 'module', 'rack', 'rackreservation', 'powerpanel', 'rackrole', 'po werport', 'consoleserverport', 'devicerole', 'modulebay', 'sitegroup', 'powerporttemplate', 'inventoryitem', 'device', 'cabletermin ation', 'manufacturer', 'frontport', 'location', 'poweroutlet', 'site', 'platform')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('prefix', 'service', 'servicetemplate', 'vlan', 'vlangroup', 'role', 'ipaddress', 'asnrange' , 'fhrpgroupassignment', 'asn', 'aggregate', 'rir', 'fhrpgroup', 'iprange', 'vrf', 'routetarget')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('savedfilter', 'tag', 'branch', 'configtemplate', 'customlink', 'customfield choiceset', 'exporttemplate', 'imageattachment', 'journalentry', 'configcontext', 'taggeditem', 'dashboard', 'script', 'eventrule', 'stagedchange', 'webhook', 'cachedvalue', 'bookmark', 'customfield', 'objectchange')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contactrole', 'contactassignment', 'contact', 'contactgroup', 'tenantgroup', 'tenant') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('virtualdisk', 'cluster', 'cluster type', 'vminterface', 'clustergroup', 'virtualmachine')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('ipsecpolicy', 'ipsecproposal', 'l2vpn', 'tunnelgroup', 'ikepolicy', 'l2vpntermination', 'tunnel', 'ikeproposal', 'tunnel termination', 'ipsecprofile')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessli nk', 'wirelesslangroup', 'wirelesslan')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:53:03.878 UTC [57] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:53:03.878 UTC [57] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('group', 'permission')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('association', 'usersocialauth', 'nonce', 'partial', 'code')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('datafile', 'datasource', 'configrevision', 'ma nagedfile', 'autosyncrecord', 'job')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('token' , 'objectpermission', 'user', 'group', 'userconfig')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('provideraccount', 'circuit', 'circuittype', 'circuittermination', 'providernetwork', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('poweroutlettemplate', 'virtualchassis', 'rearport', 'interfacetem plate', 'inventoryitemrole', 'interface', 'devicebay', 'modulebaytemplate', 'region', 'devicetype', 'virtualdevicecontext', 'rearpo rttemplate', 'powerfeed', 'consoleporttemplate', 'consoleport', 'frontporttemplate', 'cable', 'consoleserverporttemplate', 'cablepa th', 'inventoryitemtemplate', 'moduletype', 'devicebaytemplate', 'module', 'rack', 'rackreservation', 'powerpanel', 'rackrole', 'po werport', 'consoleserverport', 'devicerole', 'modulebay', 'sitegroup', 'powerporttemplate', 'inventoryitem', 'device', 'cabletermin ation', 'manufacturer', 'frontport', 'location', 'poweroutlet', 'site', 'platform')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('prefix', 'service', 'servicetemplate', 'vlan', 'vlangroup', 'role', 'ipaddress', 'asnrange' , 'fhrpgroupassignment', 'asn', 'aggregate', 'rir', 'fhrpgroup', 'iprange', 'vrf', 'routetarget')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('savedfilter', 'tag', 'branch', 'configtemplate', 'customlink', 'customfield choiceset', 'exporttemplate', 'imageattachment', 'journalentry', 'configcontext', 'taggeditem', 'dashboard', 'script', 'eventrule', 'stagedchange', 'webhook', 'cachedvalue', 'bookmark', 'customfield', 'objectchange')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contactrole', 'contactassignment', 'contact', 'contactgroup', 'tenantgroup', 'tenant') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('virtualdisk', 'cluster', 'cluster type', 'vminterface', 'clustergroup', 'virtualmachine')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('ipsecpolicy', 'ipsecproposal', 'l2vpn', 'tunnelgroup', 'ikepolicy', 'l2vpntermination', 'tunnel', 'ikeproposal', 'tunnel termination', 'ipsecprofile')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessli nk', 'wirelesslangroup', 'wirelesslan')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
netbox-1 | ?? Applying database migrations
postgres-1 | 2024-06-01 23:53:09.053 UTC [58] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:53:09.053 UTC [58] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('permission', 'group')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('association', 'partial', 'nonce', 'code' , 'usersocialauth')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('autosyncrecord', 'configrevision', 'datafile', 'job', 'datasource', 'managedfile')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('token' , 'group', 'user', 'objectpermission', 'userconfig')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('circuittype', 'provideraccount', 'circuit', 'providernetwork', 'circuittermination', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('cabletermination', 'rearport', 'consoleserverporttemplate', 'powe rfeed', 'platform', 'region', 'virtualchassis', 'devicebay', 'interfacetemplate', 'inventoryitemrole', 'rackrole', 'consoleserverpo rt', 'frontporttemplate', 'rearporttemplate', 'devicebaytemplate', 'devicerole', 'location', 'powerporttemplate', 'module', 'frontp ort', 'rack', 'sitegroup', 'devicetype', 'consoleport', 'modulebay', 'moduletype', 'cable', 'manufacturer', 'powerport', 'poweroutl ettemplate', 'rackreservation', 'device', 'interface', 'site', 'consoleporttemplate', 'cablepath', 'modulebaytemplate', 'inventoryi tem', 'poweroutlet', 'virtualdevicecontext', 'inventoryitemtemplate', 'powerpanel')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('rir', 'vlan', 'prefix', 'fhrpgroup', 'vlangroup', 'servicetemplate', 'fhrpgroupassignment', 'asnrange', 'ipaddress', 'vrf', 'service', 'role', 'routetarget', 'aggregate', 'iprange', 'asn')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('customfield', 'configcontext', 'taggeditem', 'configtemplate', 'savedfilter ', 'webhook', 'branch', 'customlink', 'customfieldchoiceset', 'imageattachment', 'tag', 'journalentry', 'dashboard', 'bookmark', 's tagedchange', 'exporttemplate', 'script', 'eventrule', 'objectchange', 'cachedvalue')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contactrole', 'contactassignment', 'contact', 'contactgroup', 'tenant', 'tenantgroup') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('virtualmachine', 'vminterface', ' cluster', 'clustertype', 'clustergroup', 'virtualdisk')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('l2vpntermination', 'l2vpn', 'ipsecpolicy', 'ipsecproposal', 'tunnelgroup', 'ipsecprofile', 'ikepolicy', 'ikeproposal', ' tunnel', 'tunneltermination')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessla ngroup', 'wirelesslan', 'wirelesslink')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:53:09.057 UTC [58] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:53:09.057 UTC [58] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('permission', 'group')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('association', 'partial', 'nonce', 'code' , 'usersocialauth')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('autosyncrecord', 'configrevision', 'datafile', 'job', 'datasource', 'managedfile')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('token' , 'group', 'user', 'objectpermission', 'userconfig')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('circuittype', 'provideraccount', 'circuit', 'providernetwork', 'circuittermination', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('cabletermination', 'rearport', 'consoleserverporttemplate', 'powe rfeed', 'platform', 'region', 'virtualchassis', 'devicebay', 'interfacetemplate', 'inventoryitemrole', 'rackrole', 'consoleserverpo rt', 'frontporttemplate', 'rearporttemplate', 'devicebaytemplate', 'devicerole', 'location', 'powerporttemplate', 'module', 'frontp ort', 'rack', 'sitegroup', 'devicetype', 'consoleport', 'modulebay', 'moduletype', 'cable', 'manufacturer', 'powerport', 'poweroutl ettemplate', 'rackreservation', 'device', 'interface', 'site', 'consoleporttemplate', 'cablepath', 'modulebaytemplate', 'inventoryi tem', 'poweroutlet', 'virtualdevicecontext', 'inventoryitemtemplate', 'powerpanel')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('rir', 'vlan', 'prefix', 'fhrpgroup', 'vlangroup', 'servicetemplate', 'fhrpgroupassignment', 'asnrange', 'ipaddress', 'vrf', 'service', 'role', 'routetarget', 'aggregate', 'iprange', 'asn')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('customfield', 'configcontext', 'taggeditem', 'configtemplate', 'savedfilter ', 'webhook', 'branch', 'customlink', 'customfieldchoiceset', 'imageattachment', 'tag', 'journalentry', 'dashboard', 'bookmark', 's tagedchange', 'exporttemplate', 'script', 'eventrule', 'objectchange', 'cachedvalue')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contactrole', 'contactassignment', 'contact', 'contactgroup', 'tenant', 'tenantgroup') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('virtualmachine', 'vminterface', ' cluster', 'clustertype', 'clustergroup', 'virtualdisk')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('l2vpntermination', 'l2vpn', 'ipsecpolicy', 'ipsecproposal', 'tunnelgroup', 'ipsecprofile', 'ikepolicy', 'ikeproposal', ' tunnel', 'tunneltermination')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessla ngroup', 'wirelesslan', 'wirelesslink')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
postgres-1 | 2024-06-01 23:53:09.466 UTC [58] ERROR: relation "django_content_type" does not exist at character 106
postgres-1 | 2024-06-01 23:53:09.466 UTC [58] STATEMENT: SELECT "django_content_type"."id", "django_content_type"."app _label", "django_content_type"."model" FROM "django_content_type" WHERE (("django_content_type"."app_label" = 'auth' AND "django_co ntent_type"."model" IN ('permission', 'group')) OR ("django_content_type"."app_label" = 'contenttypes' AND "django_content_type"."m odel" IN ('contenttype')) OR ("django_content_type"."app_label" = 'sessions' AND "django_content_type"."model" IN ('session')) OR ( "django_content_type"."app_label" = 'social_django' AND "django_content_type"."model" IN ('association', 'partial', 'nonce', 'code' , 'usersocialauth')) OR ("django_content_type"."app_label" = 'taggit' AND "django_content_type"."model" IN ('taggeditem', 'tag')) O R ("django_content_type"."app_label" = 'core' AND "django_content_type"."model" IN ('autosyncrecord', 'configrevision', 'datafile', 'job', 'datasource', 'managedfile')) OR ("django_content_type"."app_label" = 'users' AND "django_content_type"."model" IN ('token' , 'group', 'user', 'objectpermission', 'userconfig')) OR ("django_content_type"."app_label" = 'circuits' AND "django_content_type". "model" IN ('circuittype', 'provideraccount', 'circuit', 'providernetwork', 'circuittermination', 'provider')) OR ("django_content_ type"."app_label" = 'dcim' AND "django_content_type"."model" IN ('cabletermination', 'rearport', 'consoleserverporttemplate', 'powe rfeed', 'platform', 'region', 'virtualchassis', 'devicebay', 'interfacetemplate', 'inventoryitemrole', 'rackrole', 'consoleserverpo rt', 'frontporttemplate', 'rearporttemplate', 'devicebaytemplate', 'devicerole', 'location', 'powerporttemplate', 'module', 'frontp ort', 'rack', 'sitegroup', 'devicetype', 'consoleport', 'modulebay', 'moduletype', 'cable', 'manufacturer', 'powerport', 'poweroutl ettemplate', 'rackreservation', 'device', 'interface', 'site', 'consoleporttemplate', 'cablepath', 'modulebaytemplate', 'inventoryi tem', 'poweroutlet', 'virtualdevicecontext', 'inventoryitemtemplate', 'powerpanel')) OR ("django_content_type"."app_label" = 'ipam' AND "django_content_type"."model" IN ('rir', 'vlan', 'prefix', 'fhrpgroup', 'vlangroup', 'servicetemplate', 'fhrpgroupassignment', 'asnrange', 'ipaddress', 'vrf', 'service', 'role', 'routetarget', 'aggregate', 'iprange', 'asn')) OR ("django_content_type"."app_l abel" = 'extras' AND "django_content_type"."model" IN ('customfield', 'configcontext', 'taggeditem', 'configtemplate', 'savedfilter ', 'webhook', 'branch', 'customlink', 'customfieldchoiceset', 'imageattachment', 'tag', 'journalentry', 'dashboard', 'bookmark', 's tagedchange', 'exporttemplate', 'script', 'eventrule', 'objectchange', 'cachedvalue')) OR ("django_content_type"."app_label" = 'ten ancy' AND "django_content_type"."model" IN ('contactrole', 'contactassignment', 'contact', 'contactgroup', 'tenant', 'tenantgroup') ) OR ("django_content_type"."app_label" = 'virtualization' AND "django_content_type"."model" IN ('virtualmachine', 'vminterface', ' cluster', 'clustertype', 'clustergroup', 'virtualdisk')) OR ("django_content_type"."app_label" = 'vpn' AND "django_content_type"."m odel" IN ('l2vpntermination', 'l2vpn', 'ipsecpolicy', 'ipsecproposal', 'tunnelgroup', 'ipsecprofile', 'ikepolicy', 'ikeproposal', ' tunnel', 'tunneltermination')) OR ("django_content_type"."app_label" = 'wireless' AND "django_content_type"."model" IN ('wirelessla ngroup', 'wirelesslan', 'wirelesslink')) OR ("django_content_type"."app_label" = 'django_rq' AND "django_content_type"."model" IN ( 'queue')))
netbox-1 | ?? loaded config '/etc/netbox/config/configuration.py'
netbox-1 | ?? loaded config '/etc/netbox/config/extra.py'
netbox-1 | ?? loaded config '/etc/netbox/config/logging.py'
netbox-1 | ?? loaded config '/etc/netbox/config/plugins.py'
netbox-1 | Operations to perform:
netbox-1 | Apply all migrations: account, auth, circuits, contenttypes, core, dcim, django_rq, extras, ipam, sessio ns, social_django, taggit, tenancy, users, virtualization, vpn, wireless
netbox-1 | Running migrations:
netbox-1 | Applying contenttypes.0001_initial... OK
netbox-1 | Applying contenttypes.0002_remove_content_type_name... OK
netbox-1 | Applying auth.0001_initial... OK
netbox-1 | Applying auth.0002_alter_permission_name_max_length... OK
netbox-1 | Applying auth.0003_alter_user_email_max_length... OK
netbox-1 | Applying auth.0004_alter_user_username_opts... OK
netbox-1 | Applying auth.0005_alter_user_last_login_null... OK
netbox-1 | Applying auth.0006_require_contenttypes_0002... OK
netbox-1 | Applying auth.0007_alter_validators_add_error_messages... OK
netbox-1 | Applying auth.0008_alter_user_username_max_length... OK
netbox-1 | Applying auth.0009_alter_user_last_name_max_length... OK
netbox-1 | Applying auth.0010_alter_group_name_max_length... OK
netbox-1 | Applying auth.0011_update_proxy_permissions... OK
netbox-1 | Applying auth.0012_alter_user_first_name_max_length... OK
netbox-1 | Applying users.0001_squashed_0011... OK
netbox-1 | Applying users.0002_squashed_0004... OK
netbox-1 | Applying account.0001_initial... OK
netbox-1 | Applying extras.0001_squashed... OK
netbox-1 | Applying tenancy.0001_squashed_0012... OK
netbox-1 | Applying dcim.0001_squashed... OK
netbox-1 | Applying dcim.0002_squashed... OK
netbox-1 | Applying ipam.0001_squashed... OK
netbox-1 | Applying virtualization.0001_squashed_0022... OK
netbox-1 | Applying extras.0002_squashed_0059... OK
netbox-1 | Applying tenancy.0002_squashed_0011... OK
netbox-1 | Applying dcim.0003_squashed_0130... OK
netbox-1 | Applying ipam.0002_squashed_0046... OK
netbox-1 | Applying ipam.0047_squashed_0053... OK
netbox-1 | Applying wireless.0001_squashed_0008... OK
netbox-1 | Applying dcim.0131_squashed_0159... OK
netbox-1 | Applying circuits.0001_squashed... OK
netbox-1 | Applying circuits.0002_squashed_0029... OK
netbox-1 | Applying circuits.0003_squashed_0037... OK
netbox-1 | Applying dcim.0160_squashed_0166... OK
netbox-1 | Applying circuits.0038_squashed_0042... OK
netbox-1 | Applying circuits.0043_circuittype_color... OK
netbox-1 | Applying core.0001_squashed_0005... OK
netbox-1 | Applying core.0006_datasource_type_remove_choices... OK
netbox-1 | Applying core.0007_job_add_error_field... OK
netbox-1 | Applying core.0008_contenttype_proxy... OK
netbox-1 | Applying core.0009_configrevision... OK
netbox-1 | Applying core.0010_gfk_indexes... OK
netbox-1 | Applying extras.0060_squashed_0086... OK
netbox-1 | Applying dcim.0167_squashed_0182... OK
netbox-1 | Applying dcim.0183_devicetype_exclude_from_utilization... OK
netbox-1 | Applying dcim.0184_protect_child_interfaces... OK
netbox-1 | Applying dcim.0185_gfk_indexes... OK
netbox-1 | Applying dcim.0186_location_facility... OK
netbox-1 | Applying dcim.0187_alter_device_vc_position... OK
netbox-1 | Applying django_rq.0001_initial... OK
netbox-1 | Applying extras.0087_squashed_0098... OK
netbox-1 | Applying extras.0099_cachedvalue_ordering... OK
netbox-1 | Applying extras.0100_customfield_ui_attrs... OK
netbox-1 | Applying extras.0101_eventrule... OK
netbox-1 | Applying extras.0102_move_configrevision... OK
netbox-1 | Applying extras.0103_gfk_indexes... OK
netbox-1 | Applying extras.0104_stagedchange_remove_change_logging... OK
netbox-1 | Applying extras.0105_customfield_min_max_values... OK
netbox-1 | Applying extras.0106_bookmark_user_cascade_deletion... OK
netbox-1 | Applying extras.0107_cachedvalue_extras_cachedvalue_object... OK
netbox-1 | Applying extras.0108_convert_reports_to_scripts... OK
netbox-1 | Applying extras.0109_script_model... OK
netbox-1 | Applying extras.0110_remove_eventrule_action_parameters... OK
netbox-1 | Applying extras.0111_rename_content_types... OK
netbox-1 | Applying extras.0112_tag_update_object_types... OK
netbox-1 | Applying extras.0113_customfield_rename_object_type... OK
netbox-1 | Applying extras.0114_customfield_add_comments... OK
netbox-1 | Applying extras.0115_convert_dashboard_widgets... OK
netbox-1 | Applying ipam.0054_squashed_0067... OK
netbox-1 | Applying ipam.0068_move_l2vpn... OK
netbox-1 | Applying ipam.0069_gfk_indexes... OK
netbox-1 | Applying sessions.0001_initial... OK
netbox-1 | Applying social_django.0001_initial... OK
netbox-1 | Applying social_django.0002_add_related_name... OK
netbox-1 | Applying social_django.0003_alter_email_max_length... OK
netbox-1 | Applying social_django.0004_auto_20160423_0400... OK
netbox-1 | Applying social_django.0005_auto_20160727_2333... OK
netbox-1 | Applying social_django.0006_partial... OK
netbox-1 | Applying social_django.0007_code_timestamp... OK
netbox-1 | Applying social_django.0008_partial_timestamp... OK
netbox-1 | Applying social_django.0009_auto_20191118_0520... OK
netbox-1 | Applying social_django.0010_uid_db_index... OK
netbox-1 | Applying social_django.0011_alter_id_fields... OK
netbox-1 | Applying social_django.0012_usersocialauth_extra_data_new... OK
netbox-1 | Applying social_django.0013_migrate_extra_data... OK
netbox-1 | Applying social_django.0014_remove_usersocialauth_extra_data... OK
netbox-1 | Applying social_django.0015_rename_extra_data_new_usersocialauth_extra_data... OK
netbox-1 | Applying taggit.0001_initial... OK
netbox-1 | Applying taggit.0002_auto_20150616_2121... OK
netbox-1 | Applying taggit.0003_taggeditem_add_unique_index... OK
netbox-1 | Applying taggit.0004_alter_taggeditem_content_type_alter_taggeditem_tag... OK
netbox-1 | Applying taggit.0005_auto_20220424_2025... OK
netbox-1 | Applying taggit.0006_rename_taggeditem_content_type_object_id_taggit_tagg_content_8fc721_idx... OK
netbox-1 | Applying tenancy.0012_contactassignment_custom_fields... OK
netbox-1 | Applying tenancy.0013_gfk_indexes... OK
netbox-1 | Applying tenancy.0014_contactassignment_ordering... OK
netbox-1 | Applying tenancy.0015_contactassignment_rename_content_type... OK
netbox-1 | Applying users.0005_alter_user_table... OK
netbox-1 | Applying users.0006_custom_group_model... OK
netbox-1 | Applying users.0007_objectpermission_update_object_types... OK
netbox-1 | Applying users.0008_flip_objectpermission_assignments... OK
netbox-1 | Applying users.0009_update_group_perms... OK
netbox-1 | Applying virtualization.0023_squashed_0036... OK
netbox-1 | Applying virtualization.0037_protect_child_interfaces... OK
netbox-1 | Applying virtualization.0038_virtualdisk... OK
netbox-1 | Applying vpn.0001_initial... OK
netbox-1 | Applying vpn.0002_move_l2vpn... OK
netbox-1 | Applying vpn.0003_ipaddress_multiple_tunnel_terminations... OK
netbox-1 | Applying vpn.0004_alter_ikepolicy_mode... OK
netbox-1 | Applying vpn.0005_rename_indexes... OK
netbox-1 | ?? Running trace_paths
netbox-1 | ?? loaded config '/etc/netbox/config/configuration.py'
netbox-1 | ?? loaded config '/etc/netbox/config/extra.py'
netbox-1 | ?? loaded config '/etc/netbox/config/logging.py'
netbox-1 | ?? loaded config '/etc/netbox/config/plugins.py'
netbox-1 | Found no missing console port paths; skipping
netbox-1 | Found no missing console server port paths; skipping
netbox-1 | Found no missing interface paths; skipping
netbox-1 | Found no missing power feed paths; skipping
netbox-1 | Found no missing power outlet paths; skipping
netbox-1 | Found no missing power port paths; skipping
netbox-1 | Finished.
netbox-1 | ?? Removing stale content types

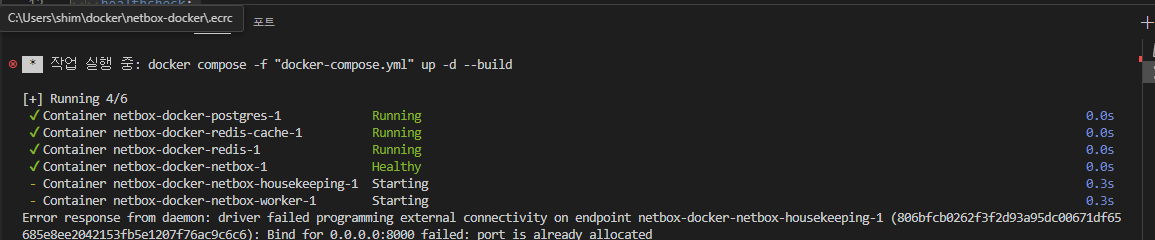

dependency failed to start: container netbox-docker-netbox-1 is unhealthy

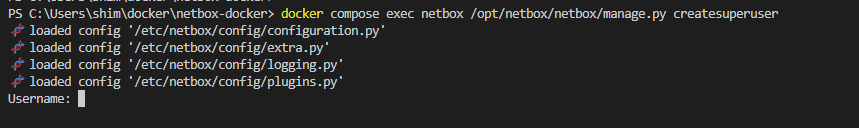

# docker compose exec netbox /opt/netbox/netbox/manage.py createsuperuser
# 3가지를 입력함
- Username :
- Email
- Password (again)
?? loaded config '/etc/netbox/config/configuration.py'
?? loaded config '/etc/netbox/config/extra.py'
?? loaded config '/etc/netbox/config/logging.py'
?? loaded config '/etc/netbox/config/plugins.py'
Username: netbox
Email address:
Password:
Password (again):
Superuser created successfully.
# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
5b1c40b723a5 netboxcommunity/netbox:v4.0-2.9.1 "/usr/bin/tini -- /o…" 7 minutes ago Created netbox-docker-netbox-worker-1
3c6e4e62e409 netboxcommunity/netbox:v4.0-2.9.1 "/usr/bin/tini -- /o…" 7 minutes ago Created netbox-docker-netbox-housekeeping-1
34487cddea4f netboxcommunity/netbox:v4.0-2.9.1 "/usr/bin/tini -- /o…" 7 minutes ago Up 7 minutes (healthy) 0.0.0.0:8000->8080/tcp netbox-docker-netbox-1
0eba0a63b9f3 postgres:16-alpine "docker-entrypoint.s…" 7 minutes ago Up 7 minutes 5432/tcp netbox-docker-postgres-1
4a35bcc6c92a redis:7-alpine "docker-entrypoint.s…" 7 minutes ago Up 7 minutes 6379/tcp netbox-docker-redis-cache-1
5661a362262f redis:7-alpine "docker-entrypoint.s…" 7 minutes ago Up 7 minutes 6379/tcp netbox-docker-redis-1
89237a2ceae9 hello-world "/hello" 44 minutes ago Exited (0) 44 minutes ago vigilant_hypatia
76f943663e5c hello-world "/hello" 14 hours ago Exited (0) 14 hours ago eloquent_feistel
Netbox 접속
Docker 상태(docker ps -a) 에서 나오는 8000Port 포워딩 주소로 접속함 (192.168.56.236은 테스트 서버 ip)
http://192.168.56.236:8000/

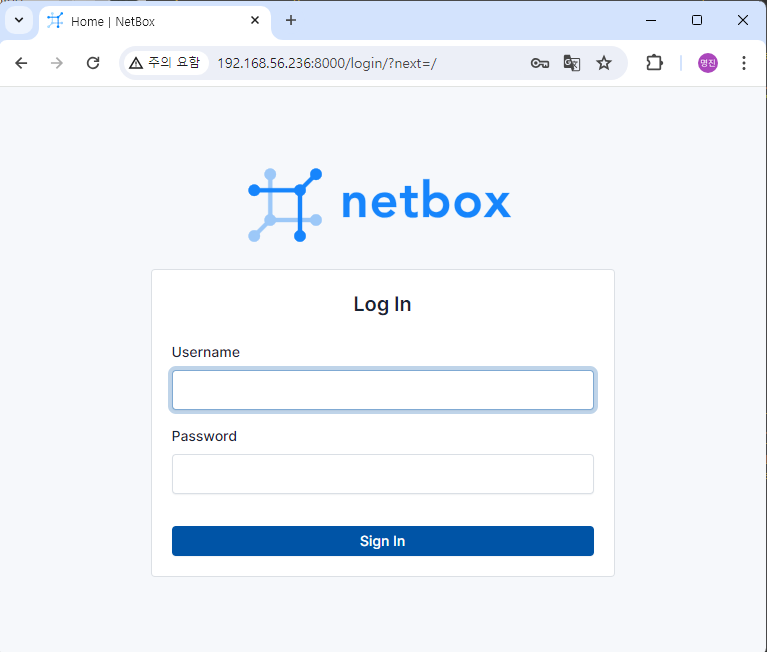

로그인 화면

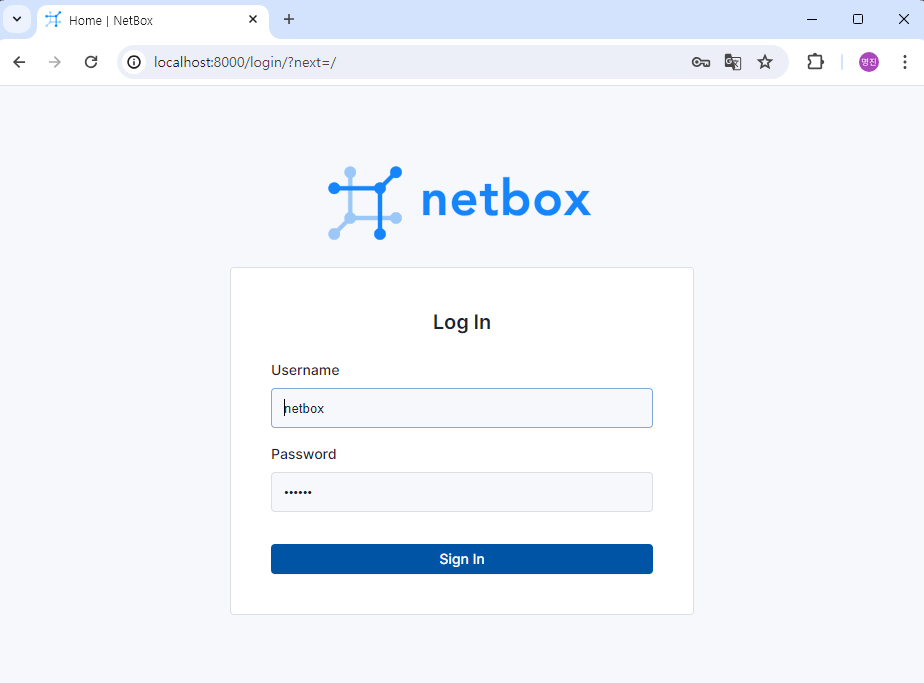

Netbox 사용자 계정 생성한 계정 및 패스워드로 로그인
